Condition : Professionally Refurbished by Barcode-Arena.com
Spec : (MC9190-G Mobile Computer, WiFi 802.11a/b/g, 2D Barcode Scanner, Color-Touch QVGA Display, 256MB/1GB, 5250 Emulation Keypad, Audio, Voice, Bluetooth)
Includes : Battery (New) / Stylus / Hand-Strap
Warranty : 1-Year Warranty and Help-Desk Support, only from Barcode-Arena.com
QTY IN STOCK: 6
MC9190-G30SWJYA6WR | MC9190-G Pistol-Grip, 2D/1D Scanner, 5250 Emulation Keypad
Looking for another Motorola MC9190?
Brand: Motorola, Symbol, Zebra
Alt Part#: MC9190 G30SWJYA6WR, MC9190-G3OSWJYA6WR
Type: Barcode Scanner, Data Collection Terminal
Series: MC9190G, MC 9190G, MC-9190, MC 9190-G, 1549D-MC9190
Wireless Connectivity: Bluetooth, WiFi 802.11a/b/g
Operating System: Windows CE 6.0, CE6
Scanner Type: Industrial Warehouse Wireless Bar code Reader, Cloud Inventory

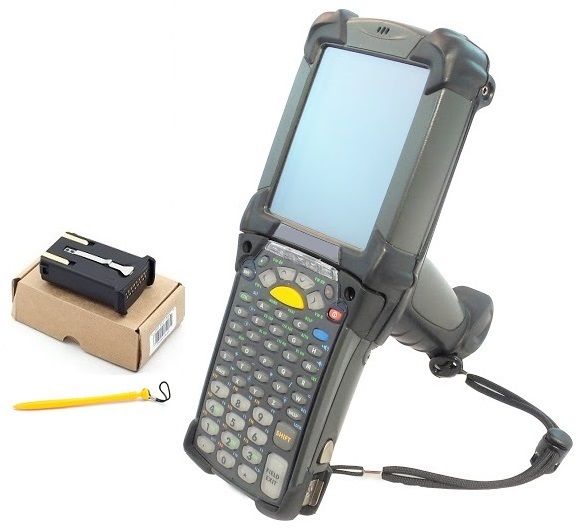

MC9190-G Mobile Computer
The Motorola MC9190-G mobile computer handheld barcode scanner "scangun" is a rugged high performance mobile device and RF terminal with built-in bar code reader for your business. Commonly utilized with ERP, WMS (Warehouse Management System), inventory scanning, order picking, receiving, SQL database, host emulation, remote desktop, and cloud web browser management systems for rigorous barcoded data collection. The Motorola 9190 is the successor to the Symbol MC9090, and brings more processing performance and newer os and firmware updates to your operation. Windows Embedded Handheld 6.5 operating system for your barcode scanning environment. The MC9190 barcode scanner comes standard with 802.11 WiFi wireless connectivity and bluetooth. Whether you need 1D scanning, 2D scanning, long range, or standard range - the flagship RF terminal series, the Symbol MC9190 brings you versatile configurability. IP64 durability rating means the Motorola 9190 barcode scanner suits warehousing, 3PL, distribution scanning, manufacturing, back office, and more.
Gun-Grip: The "scangun" is the most popular style of wireless mobile computer barcode scanners. The Motorola MC9090-G is the most successful data collection RF scanner of all time. Commonly paired with WMS, ERP, and Inventory management systems utilizing Terminal Emulation, Remote Desktop, .net or SQL applications as the bridge to your database. Durable enough to last up to 10 Years, WiFi that runs on all securities, and reliable enough to require minimal maintenance throughout it's life. Need more performance? Shop the MC9190 or MC9200 scanners. Need more compact? Shop the Motorola MC3190-G. Gun-Style barcode scanners typically provide the most specs to choose from: Windows Mobile, Windows CE, Android, 2D, 1D, Long Range, Short Range scanners, Alpha, Numeric, 43-Key, 53-Key - the larger housing allows more goodies to be stuffed inside the RF ScanGun!
Windows CE: The Windows CE operating for wireless mobile computing and barcode scanning is an extremely stable platform. With embedded functionality including Microsoft Remote Desktop, terminal emulation client, web browser, and wordpad for .csv collection - you can directly remote into your database over Wifi connection and scan & input data directly into cloud. The .net compact framework also enables development of "home-grown" applications for direct data-injection to your information server. The famously popular Motorola MC9090-G, Motorola MC9190-G, Motorola MC9200 series scanguns all carry Windows CE as an available OS option to choose from.
CPU: Marvell PXA320 processor at 806 MHz
Operating System: Windows CE 6.0 Professional
Memory: 256 MB RAM/1 GB FLASH
Expansion: SD Card (up to 32 GB)
Data Capture SE4500: 2D standard range scan engine
Decode Capability: 1D and 2D Decode Capability: 1D = Code 39 Code 128 Code 93 Codabar Code 11 Discrete 2 of 5 Interleaved 2 of 5 EAN-8 EAN-13 MSI UPCA UPCE UPC/EAN supplementals Coupon Code Trioptic 39 Webcode RSS-14 RSS Limited SS Expanded Chinese 2 of 5. 2D = Code 39 Code 128 Code 93 Codabar Code 11 Interleaved 2 of 5 Discrete 2 of 5 MSI EAN-8 EAN-13 UPCA UPCE UPC/EAN supplementals Coupon Code Trioptic 39 Webcode TLC39 Composite AB Composite C Micro PDF-417 PDF-417 Macro PDF-417 (Macro) Micro PDF-417 QR Code Data Matrix Maxi Code US Postnet US Planet UK 4-state Australian 4-state Canadian 4-state Japanese 4-state Dutch Kix Chinese 2 of 5 USPS 4-state (US4CB) Aztec microQR GS1 DataBar GS1 DataBar Truncated GS1 DataBar Limited GS1 DataBar Stacked GS1 DataBar Expanded GS1 DataBar Expanded Stacked GS1 DataBar Stacked Omni.
Keyboard: 28-key; 43-key; 53-key; Terminal Emulation (5250, 3270, VT)
Display: 3.7 in. color. Windows Mobile: VGA; Windows CE: QVGA/VGA switchable.
Power: Removable, rechargeable 7.2 V Lithium Ion 2200 mAh battery pack, 15.8 watt hours
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Battery Charging Temperature: 32 °F to 104 °F (0 °C to +40 °C)
Humidity: 5% to 95% non condensing
Multiple drops to concrete: 6 ft./1.8 m across the operating temperature range; meets and exceeds MIL-STD 810G
Tumble: 2,000 one-meter tumbles at room temperature (4,000 hits) per IEC Tumble Specification
Sealing: IP64 (electronic enclosure, display and keypad) per IEC Sealing Specification
WiFi: WLAN radio 802.11a/b/g
802.11a: up to 54Mb per second
802.11b: up to 11Mb per second
802.11g: up to 54Mb per second
WLAN Security: WPA2 Enterprise, 802.1x; EAP-TLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); PEAP (TLS, MSCHAPv2, EAP-GTC); LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC), WPA2/AES, CCX v4, FIPS 140-2 and IPv6
Bluetooth: Bluetooth Version 2.1 with EDR
Peripherals and Accessories: Cradles Single-slot serial/USB, 4-slot Ethernet, 4-slot charge only and forklift
Charger: 4-slot battery charger, 4-slot universal battery charger.
Barcode Scanner Engine: MC9190-G?XXXXXXXXX
A = SE960 Standard Range 1D Laser
J = Lorax Long Range 1D Laser
3 = SE4500 Blockbuster 2D Standard Range
5 = SE4500 Blockbuster 2D Standard Range Imager with DPM (Direct Parts Mark)
8 = SE4500 Blockbuster 2D Standard Range (Driver License Parsing)
9 = SE4600 2D Long Range 2D Imager
S = Color 3.7” Diagonal (640 x 480 pixels) w/ Touch
W = 256MB RAM / 1GB Flash
A = 28 Key
E = 53 Key
F = 43 Key
G = 53 key VT
H = 53 key 3270
J = 53 key 5250
Operating System: MC9190-GXXXXX?XXXX
Q = Windows Mobile 6.5 (Windows Embedded Handheld 6.5.3)
Y = Windows CE 6.0
Additional Features: MC9190-GXXXXXX??XX
A6 = Audio/Voice/Bluetooth
C6 = Condensation Resistant w/ Audio/Voice/Bluetooth
WR = Worldwide ROHS
Below are examples of component failures that are covered under the warranty provided only by Barcode-Arena.com. Limitations apply.
Failures caused by employee-inflicted physical damage, including wear-&-tear, are not covered. Manufacturer's warranty and support not included.
- - If device is stuck in boot screen.
- - If device will not power up.
- - Failed Ribbon Flex.
- - Failed Barcode Scanner.
- - Failed Touch-Screen.
- - Failed Keypad, Keypad Buttons, or Trigger Buttons
- - Failed Storage Card Slot.
- - Failed USB Cable.
- - Failed ability to detect Wifi Networks in-range (Wifi Adapter Unavailable Error)
- - Failure to Charge.
- - Failure to USB Communicate.
Bottomline, we are here to support you!
- This product is professionally refurbished by Barcode-Arena.com.
- Warrany & Help-Desk Support provided only from Barcode-Arena.com. (Manufacturer's warranties not included).
- Are we manufacturer authorized resellers? No.
