Condition : Professionally Refurbished by Barcode-Arena.com
Spec : (MC55A Rugged Handheld, WiFi 802.11a/b/g, 2D/1D Barcode Scanner, NUMERIC Keypad, Windows Embedded 6.5 (WEH6.5), Color-Touch VGA Screen, 256MB/1GB, Audio, Bluetooth)
Includes : Extended Battery (New) / Tethered Stylus / Hand-Strap.
Warranty : 1-Year Warranty and Help-Desk Support, only from Barcode-Arena.com

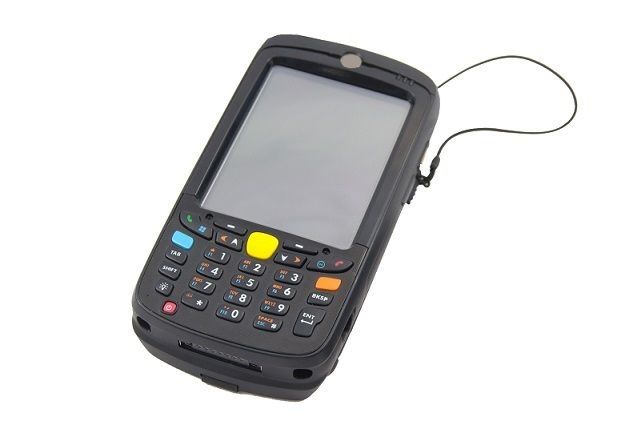

MC55A0-P30SWRQA9WR- Motorola MC55A Handheld, WiFi, 2D SE4500 Barcode Scanner
Looking for another Symbol MC55 / MC55A?
Model: MC55A, MC55A0
Brand: Motorola, Symbol, Zebra
Alt Id: MC55AO, MC55A0-P30SWRQA9WR, MC55AO-P3OSWRQA9WR
Type: Barcode Scanner, Data Collection Terminal, Handheld
Series: MC55A, MC55AO, 55A
Wireless Connectivity: Bluetooth, WiFi 802.11a/b/g
Operating System: Windows Embedded Handheld 6.5, WEH 6.5, Windows Mobile 6.5
Scanner Type: Industrial Handheld Mobile Computer Bar code Reader, Inventory Barcode Scanner, ERP, WMS, Back Office
The Motorola MC55A0 series handheld computer barcode scanner from Zebra, is a rugged mobile device for high performance wireless WiFi data collection and barcode scanning for inventory, warehouse management, healthcare, distribution, supply chain, ERP, WMS, receiving, logistics, back office stock keeping, retail, and more. Plenty of memory and sd card storage allows for high speed processing - web browing, sql applications, Excel, remote desktop, and with the netcf35 compact framework develop custom apps on the Windows Mobile 6.5 operating system (WEH6.5). The MC55A has the option of a backshell 3.2 megapixel camera for picture taking. Scan Barcodes with the SE960 1D laser scan engine for best-in-class performance of 1D bar codes, including near contact to medium range decoding of even the widest bar code, or with the SE4500 2D imager deliver laser-like performance both 1D, 2D, and QR bar codes. IP64 durability rating means you will withstand dust and water. Rechargeable Lithium Ion 3.7V 3900mAh battery is long-lasting for all day usage. Being so durable, the MC55A can be repaired and maintenanced for years, making sure your investment lasts.
Windows Embedded Handheld 6.5, aka WEH6.5, WEH6.5.x, WEH 6.5.3 is the successor to Windows Mobile 6.5. Originally released on the Motorola ES400 and Motorola MC65, then soon adapted to the Motorola MC75A, Motorola MC9190-G, Motorola MC55A, and an option available to the MC92N0-G and MC67. The newest breed of Windows Mobile includes many refinements such as more robust Web Browser, newer security encryptions over remote desktop, further Wifi firmware enhancements - all while bringing you VoIP funcitonality (on select models), email, messaging, netCF for custom app development, while incorporating the best and most reliable built-in barcode scanner technology available on the market.
CPU: Marvell PXA 320 processor at 806 MHz
Operating System: Microsoft® Windows Mobile™ 6.5.3 Classic
Memory: 256 MB RAM/1 GB Flash
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Charging Temperature: 32°F to 104°F / 0° C to 40° C
Humidity: 95% non-condensing
Drop Specification: Multiple 1.8 m (6 ft.) drops per MIL-STD 810G specifications.
Tumble: 1000 0.5 m (1.6 ft.) tumbles (2000 drops) per IEC tumble specifications
Sealing: IP64 per IEC sealing specifications
Touch Panel: Glass analog resistive touch
Backlight: LED backlight
Battery: Rechargeable Lithium Ion 3.7V, 2400 or 3600 mAh Smart battery
Backup Battery: NiMH battery (rechargeable) 18 mAh 2.4 V (not user accessible).
Expansion Slot: User accessible microSD slot. Up to 32 GB.
Network Connections: Full-speed USB, host or client, Bluetooth and WiFi.
Notification: LED and audible alert
Keypad Options: 26-key numeric; 44-key QWERTY, 44-key AZERTY, 44-key QWERTZ;
Audio: Speaker, microphone, receiver (for handset mode use), and Bluetooth audio headsets.
Bluetooth: Class II, v 2.1 EDR; on-board antenna. Supports StoneStreet One Bluetooth stack and Microsoft Bluetooth stack.
2D Barcode Scanner: SE4500
Product Configuration Part Number Guide: MC55A0
MC = Mobile Computer
Product Family: MC??A0-XXXXXXXXXXX
55 = MC55 Series EDA
Wireless Communication: MC55??-XXXXXXXXXXX
A = WiFi 802.11 a/b/g
Product Type: MC55A0-?XXXXXXXXXX
P = Rugged Handheld (EDA)
H = Healthcare Handheld (EDA)
Barcode Scanner: MC55A0-X?XXXXXXXXX
2 = 1D Laser (SE960)
9 = 1D Laser (SE960) + Camera
3 = 2D Imager (SE4500)
4 = 2D Imager (SE4500) + Camera
5 = 2D Imager (SE4500HD High Density)
6 = 2D Imager (SE4500HD High Density) + Camera
7 = 2D Imager (SE4500DL Driver's License) + Camera
8 = 2D Imager (SE4500DL Driver's License)
WAN Carrier: MC55A0-XX?XXXXXXXX
0 = None (WiFi Only)
S = Color Touch VGA
W = 256MB/1GB
Q = QWERTY
R = Numeric
N = PIM
Y = AZERTY
Z = QWERTY
Operating System: MC55A0-XXXXXX?XXXX
Q = Windows Mobile 6.5 Classic (WEH 6.5)
Additional Features: MC55A0-XXXXXX?XXXX
A = Bluetooth
7 = Standard Capacity Battery (1X - 2400 mAh)
9 = Extended Capacity Battery (1.5X - 3600 mAh)
WR = World Wide
Below are examples of component failures that are covered under the warranty provided only by Barcode-Arena.com. Limitations apply.
Failures caused by employee-inflicted physical damage, including wear-&-tear, are not covered. Manufacturer's warranty and support not included.
- - If device is stuck in boot screen.
- - If device will not power up.
- - Failed Ribbon Flex.
- - Failed Barcode Scanner.
- - Failed Touch-Screen.
- - Failed Keypad, Keypad Buttons, or Trigger Buttons
- - Failed Storage Card Slot.
- - Failed USB Cable.
- - Failed ability to detect Wifi Networks in-range (Wifi Adapter Unavailable Error)
- - Failure to Charge.
- - Failure to USB Communicate.
Bottomline, we are here to support you!
- This product is professionally refurbished by Barcode-Arena.com.
- Warrany & Help-Desk Support provided only from Barcode-Arena.com. (Manufacturer's warranties not included).
- Are we manufacturer authorized resellers? No.
