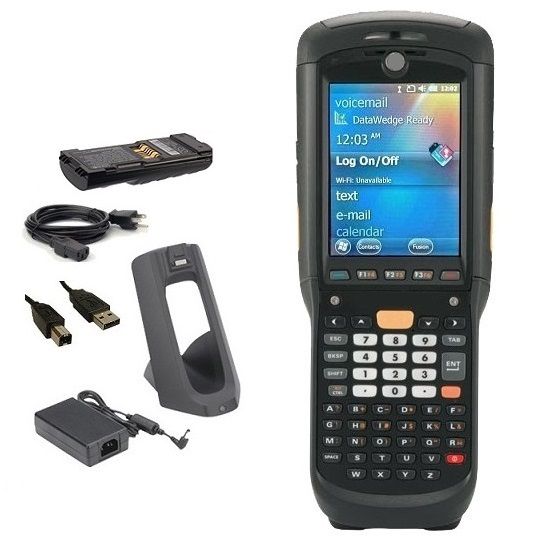

MC9596-KDAEAB00100 (Complete Kit with Cradle)

MC9596-KDAEAB00100 : MC9596, Cradle, WiFi, 2D Scanner, Full Keyboard, Windows Mobile 6.5

*Cradle Warranty: 3-Year Warranty and Help-Desk support, only from Barcode-Arena.com

Overview

Model:  MC9500

Symbol, Zebra, (formerly Motorola)

Alt:  MC95xx, MOT-MC9596KDAEAB00100, MC9596-KDAEAB00100

Type:  Barcode Scanner, Data Collection Terminal, Bar Code Reader

Series:  MC-9596, MC9596, MC-9500, 9500 Handheld Computer, mc9596 KDAEAB00100

Wireless Connectivity:  Bluetooth, WiFi 802.11a/b/g,

Operating System:  Windows Mobile 6.5

Scanner Type:  Industrial Barcode Scanner, Inventory, WMS, ERP, Delivery, Route Accounting, DSD.

The MC9500-K industrial mobile computer wireless rugged handheld with built-in barcode scanner brings AIDC data collection and scanning performance to logistics, 3PL, ERP (enterprise resources planning), WMS (warehouse management systems), delivery / signature capture, inventory systems and beyond.  Wirelessly sync, scan, pick, receive, pack, stock re-locate items on the high performance platform of the MC9590 (WiFi Only), MC9596 (WiFi + CDMA Cell), MC9598 (WiFi + GSM Global Cell).  IP67 and rugged construction reduces maintenance and makes your investment last – maximize ROI (return on investment).  Operating system options include Windows Mobile 6.1, Windows Mobile 6.5, Windows Embedded Handheld 6.5 (Classic and Professional).  Whether you need 1D scanning, 2D scanning, long range, or standard range – the Zebra Symbol MC9500 K industrial-class hand held gives you the options to make your bar code system solid.  Shop online, call, or email if you need assistance with finding the right MC 9500 wireless scanner for you!

CPU: Marvell PXA320 at 806 MHz
Operating System: Windows Mobile 6.1, Windows Mobile 6.5, Windows Embedded Handheld (Classic and Professional editions)
Display: 3.7 in. VGA Color (TFT) Display (640 x 480) with touch panel and backlight
Touch Panel: Polycarbonate analog resistive touch
Backlight: LED Backlight
Keypad Options: Modular: alpha primary; numeric telephony, numeric calculator, alpha numeric
Expansion Slot: microSD card slot, supports up to 16GB
Notifications: Programmable LEDs; Audio notifications; Vibrator alerts
Memory: 128MB RAM/512MB Flash
Drop Specifications: 6 ft./1.8 m drop to concrete across the operating temperature range
Tumble Specification: 2000 3.2 ft./1 m tumbles (4,000 hits) at room temperature
Operating Temperature: -4° F to 122° F/-20° C to 50° C
Storage Temperature: Ambient to -40° F/-40° C
Sealing: IP67 sealing; meets and exceeds applicable IEC sealing specifications
Humidity: 5 - 95% non-condensing
Altitude: -1,200 ft. to 12,000 ft. operational
1D Barcode Scanner: SE950
2D Barcode Scanner: SE4500SR
Motion-sensor: 3-axis accelerometer that enables motion-sensing applications for dynamic screen orientation, power management and free-fall detects
Cell Radio: 3.5G GSM HSDPA and CDMA-EVDO Rev A broadband for voice and data
Key and Trigger: 1 million presses
Battery Capacity: Rechargeable Lithium Ion 4800 mAh battery @ 3.7V
Standby Time: 150 hours
Talk Time: 8 hours (minimum/suspend mode)
Scanning: 1D Scanner; 2D Imager; 3 MP auto-focus flash-enabled digital color camera with symbology decode software
Scan Angle: Optimized for scanning (15° downward angle)
Data Capture Options: 1D laser scanner; 2D imager; 1D laser scanner and camera; 2D imager and camera; Color Camera
Camera Resolution: 3 megapixel
Illumination: User controllable flash
Lens: Autofocus
Frequency Band: HSDPA: 850, 900, 1800,1900, and 2100 MHz
EVDO Rev A: 850 and 1900 MHz
Antenna: Internal antenna w/diversity
Integrated GPS: Integrated standalone or Assisted-GPS (A-GPS) through SUPL; SiRFstarIII GSC3f/LP chipset
WiFi Radio: WLAN Tri-mode IEEE® 802.11a/b/g
Security: WPA2 (Personal or Enterprise); 802.1x; EAP-TLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); PEAP (TLS, MSCHAPv2, EAP-GTC); LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC); CCXv4 certified; support for IPv6; FIPS 140-2 Certified
Antenna: Internal antenna w/diversity
Voice Communications: Voice-over-IP ready, Wi-Fi™-certified, IEEE
Bluetooth®: Class II, v2.1 with Enhanced Data Rate (EDR); integrated antenna
IrDA: Infra-red port for connection to printers and other devices
Audio: VoWWAN; VoWLAN; TEAM Express compliant; rugged audio connector; high-quality speakerphone; support for wired and wireless (Bluetooth) headsets; headset, handset and speaker phone modes
I/O: USB 2.0 Client (High Speed) or USB 1.1 host (Full Speed); USB (via 1-bay cradle) or Ethernet (via 4-bay cradle)
Communication and Charging Cables: Charge only cable, auto charge cable, USB charge/ sync cable, DEX cable, modem adapter cable
Cradles: 4-slot battery charger; 1-slot battery charger; 4-bay Ethernet cradle; 4-bay charge only cradle; single bay USB cradle; vehicle battery charger using auto charge cable; vehicle cradle with charging capabilities.

• Product Configuration Part Number Guide: MC9590-K

WAN Radio: MC959?-KXXXXXXXXXX
0 = None
6 = HSDPA
8 = CDMA-EVDO Rev A
Data Capture: MC959X-K?XXXXXXXXX
A = SE950 1D Laser Scan Engine
B = SE4500 2D imager
C = SE950 1D Laser with 3 MP Color Camera
D = SE4500 2D Imager with 3 MP Color Camera
E = SE4500 2D DL Imager with 3 MP Color Camera
F = SE4500 2D HD/DPM Imager with 3 MP Color Camera
G = SE960 1D Laser Scan Engine adaptive
H = SE960 1D Laser Scan Engine adaptive with 3 MP Color Camera
WAN Cell and Data Carrier: MC959X-KX?XXXXXXXXX
0 = None
A = Penta-band GSM
B = Verizon
C = Sprint
Operating System: MC959X-KXX?XXXXXXXX
A = Windows Mobile 6.x Classic
B = Windows Mobile 6.x Professional
C = Windows CE 6.0
D = Windows Mobile 6.5 Classic
E = Windows Mobile 6.5 Professional
Language: MC959X-KXXX?XXXXXXX
A = English
F = French
I = Italian
G = German
S = Spanish
C = Traditional Chinese
M = Simplified Chinese
K = Korean
J = Japanese
Keypad: MC959X-KXXXX?XXXXXX
B = Alpha and Numeric Primary Wide
C = Alpha Primary
D = Numeric Telephony
E = Numeric Calculator
J = Alpha Primary Bezel-less
G = VT Terminal Emulation
I = VT 5250 Terminal Emulation
