SKUSTACK Warehouse Management - MC40 Hands-Free Barcode Scanner

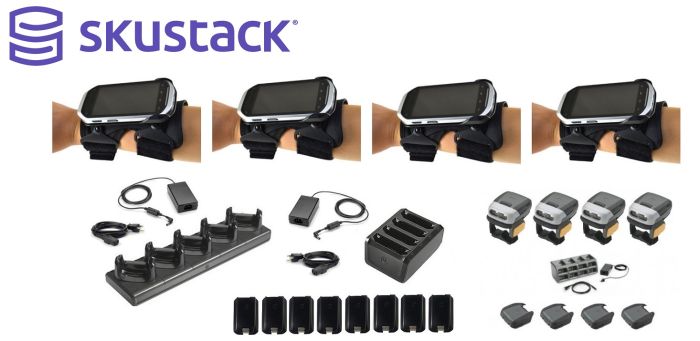

SKUSTACK Warehouse WMS & Inventory Management Software - MC40 Hands-Free Wearable Barcode Scanner Bundle

Model: MC40

Brand: Motorola, Symbol, Zebra

Alt: MC40N0, MC40NO, MC 40

Type: Rugged Mobile Android Device, WiFi, Barcode Scanner, 2D + 1D Bar Code Reader

Series: MC 40, MC-40N0, MC 40NO

Wireless Connectivity: Bluetooth, WiFi 802.11a/b/g/n

Operating System: Android

Scanner Type: Industrial Hand Held Android Bar code Reader, Warehouse, Inventory, SkuStack

Android devices with built in barcode scanners are a phenomonon. Say goodbye to the junky aftermarket attachments (you know what we're talking about) that many struggle to use with their phones or tablets because of their heavily under-developed firmware and cheap-as-possible hardware. With the release of top-quality, more affordable models like the Motorola MC40, you can easily access your cloud inventory system.

Overview Model: RS507

Brand: Motorola, Symbol, Zebra

Alt Part#: RS-507, MOT-RS507, RS5O7

Type: Bluetooth Wearable Barcode Scanner, Data Collection Terminal, Bar Code Reader

Wireless Connectivity: Bluetooth, HID Slave Keyboard Emulation, SPP

Scanner Type: Industrial Barcode Scanner, ForkLift, Warehouse

Direct Connect to: Android, Windows PC's, iPads, iPhones, iPods, iOS, Mac OS, SurfacePro, Laptops, Tablets, Android Tablets and Smart Phones, Chromebooks.

Commonly applied to: Accounting, WMS, ERP, Excel, Word, Spreadsheets, Chrome, Internet Explorer, Firefox, Lenovo, HP, Macbook, Dell, Samsung, just to name a few of the most popular host devices, ticket scanning, inventory, Point-Of-Sale (POS), warehouse workstations, hospitals, pharmacies, beverage distributing.

Easy Programming (ADF): Auto Enter, Carriage Return, Auto Tab, Prefix, Suffix

Reads Barcodes Symbologies: QR Code, UPC, Data Matrix, Code 39, Code 128, Codabar,, EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 11, Code 32 Pharmaceutical (PARAF), Code 93, MSI, RSS-14, RSS Limited, RSS Expanded, Straight 2 of 5 IATA (two-barstart/stop), Straight 2 of 5 Industrial (three-bar start/stop), Trioptic, UPC-E1, 4-CB (4-State Customer Bar code), Aztec, MicroPDF417, PDF417, MaxiCode, Australian Post, British Post (4 state code and “infomail”), Japanese Post, KIX (Netherlands) Post, Planet Code, Postnet, EAN UCC Composite, TCIF Linked Code 39 (TLC39).

Learn More about the RS 507 :
Extended battery: Li-Ion 1940 mAh, 3.7 V with up to 70,000 scans (continuous) or up to 20 hours with 900 scans per hour on a single charge using fresh batteries.
Supported profiles: Human Interface Device Profile (HID), Serial Port Profile (SPP), Service Discovery Application Profile (SDAP).
Drop Specification: 6 ft./1.8 m multiple drops to concrete across operating temperature range.
Optical Resolution: WVGA 752 H x 480 V pixels (gray scale)
Roll: 360°
Pitch Angle: ± 60° from normal
Skew Tolerance: ± 60° from normal
Aiming Element: 655 nm ± 10 nm Visible Laser Diode
Illumination Element 25 nm ± 5 nm Red LEDs
Field of View: Horizontal: 39.6°; Vertical: 25.7°
Ambient Light Immunity: From total darkness
Indoor: 450 ft. candles (4,845 lux).
Outdoor: 9,000 ft. candles (96,900 lux).
Motion Tolerance: 63.5 cm (25 inches) per second, typical.
Supported Aiming Modes: Class 2 Laser, cross hair with bright center for sunlight visibility; Pick List mode option.
Bluetooth: Class II, v 2.1 with Adaptive Frequency Hopping (AFH).
Pairing: by reading terminal BT address as bar code off the display or from a printed label.
Field Replaceable Parts: Batteries, corded adaptor, trigger clamp, triggerless clamp, comfort pad, straps and strap buckle.
LED: Two (parallel), multi color, rear left and rear right.
Beeper: Rear center, up to 80 dBA SPL @ 10 cm.
Restore Key: User accessible for emergency boot up and Bluetooth reconnect (after excessive disconnection period).
Scan Triggering: Manual or automatic using Interactive Sensing Technology (IST).
Operating Temperature: -20° to 55° C/-4° to 131° F.
Storage Temperature: -40° to 70° C/-40° to 158° F excl. Battery
Humidity: 5% to 85% (non-condensing).
Sealing: IP54
(ESD): ±15kV air discharge, ±8kV direct discharge.
Standard battery: Li-Ion 970 mAh, 3.7 V with up to 35,000 scans (continuous) or upto 10 hours with 900 scans per hour on a single charge using fresh batteries.
Corded: Corded adaptor to WT4090
Battery charger: Charger accommodates eight standard and extended batteries simultaneously each with LED indicator and battery age test.
Electrical Safety: Certified to UL60950-1, CSA C22.2 No. 60950-1, EN60950-1, IEC 60950-1.
RoHS: Compliance with RoHS standards.

• Items that are described in Product Description as Professionally Refurbished by Barcode-Arena.com are Professionally Refurbished by Barcode-Arena.com.
• Warranty & Help-Desk Support provided only from Barcode-Arena.com. (Manufacturer's warranties not included).
• Are we Zebra manufacturer authorized resellers? No.
• Are we Chainway manufacturer authorized resellers? Yes. We are both the Distribution Hub and Full Service Center for Chainway in the United States. All Chainway Products are Brand New. When you purchase Chainway products from Barcode-Arena.com; you receive both Chainway manufacturer Warranty, and, Barcode-Arena.com official manufacturer Service Center Warranty with repair services performed locally in the United States by Barcode-Arena.com.

Announced in 2014, Zebra acquired Motorola Solutions’ Enterprise business, most commonly known for its barcode scanners and rugged mobile device barcode scanners, including Symbol scanning equipment. Any common reference to such equipment branded as Motorola (no longer property rights holder), and, Symbol are for informational purposes only, and, which line of product are now property of Zebra.
